Product Details

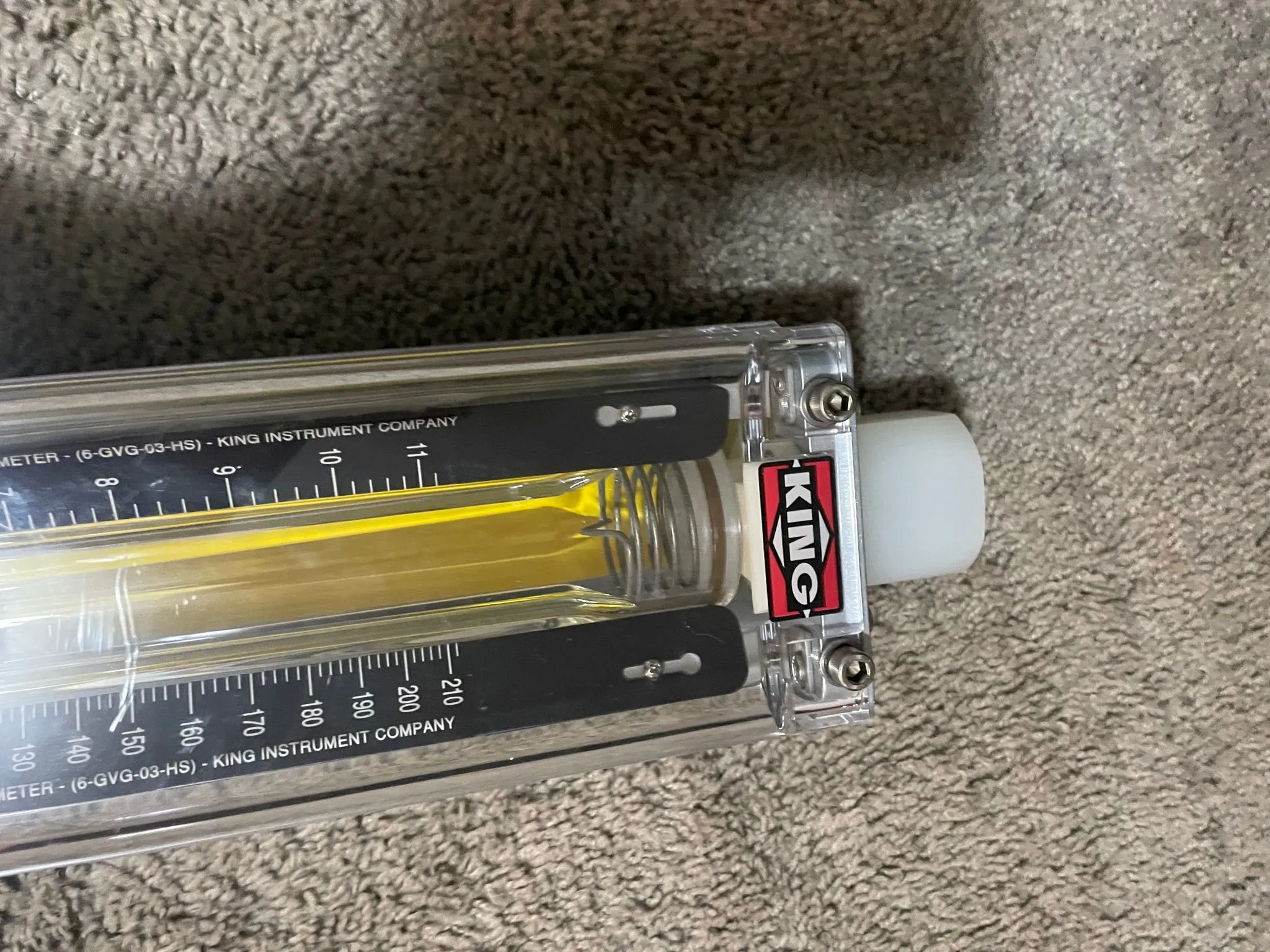

The King Instrument Silver Series flow meter is available in 35 flow ranges and 6 tube sizes with horizontal and vertical connection options. The powder-coated 304 stainless steel case and precision molded polycarbonate shield will tolerate most corrosive applications. It comes standard with 316L stainless steel internal components and fitting material and Viton o-ring, but other options are available: Hastelloy C-276 internal components (optional) PVDF fitting material (optional with FNPT only) Buna N, EPR, and Kalrez o-ring materials (optional) Borosilicate Kinglass metering tube 0.23 to 85GPM (Water) 1.15 to 285 SCFM (Air) Direct reading, detachable scales Size 3 to 6 = 10 inch (250mm) Size 8 to 9 = 8 inch (200mm) ±2% of full scale flow accuracy 10:1 turndown & 0.5% repeatability 316L SS Fittings – 200°F (93°C) max temp Max pressure of 300 psig (sizes 3 & 4 with SS fittings) Varies based on size and fitting material
